Suzuki TIE ROD END steering replacement 48810-72M01 Guide

• Maker:-Suzuki
• Modal:- WAGON-R
• Part Numbers:-48810-72M01

Replacing the Suzuki TIE ROD END steering is essential for maintaining steering control and safety in your vehicle. This component connects the steering rack to the steering knuckle, allowing for precise handling. A worn tie rod end can lead to loose steering, uneven tire wear, and increased safety risks. Timely replacement ensures improved vehicle performance, and enhanced handling, and prolongs the life of your tires, contributing to a smoother and safer driving experience. Regular maintenance of this part is crucial for reliable vehicle operation.

Tools:

• Socket set
• Wrench set
• Torque wrench
• Ball joint separator or pickle fork
• Pliers
• Hammer
• Safety goggles
• Gloves

Materials:

• New tie rod end (part number 48810-72M01)
• Grease
• Loctite or thread locker

Safety First

• Park the Vehicle: Ensure the vehicle is on a flat surface and turn off the ignition.
• Secure the Vehicle: Use wheel chocks and jack stands to secure the vehicle.

 Remove the Wheel

• Loosen Lug Nuts: Slightly loosen the lug nuts on the front wheel where the tie rod end is being replaced.
• Jack Up the Vehicle: Use a jack to raise the vehicle and secure it with jack stands.
• Remove the Wheel: Take off the wheel to access the steering components.

Locate the Tie Rod End

• Identify the Tie Rod End: It connects the steering rack to the steering knuckle.

Disconnect the Old Tie Rod End

• Remove the Cotter Pin: If present, use pliers to remove the cotter pin from the tie rod end nut.
• Loosen the Nut: Use a socket or wrench to loosen the nut securing the tie rod end to the steering knuckle.
• Separate the Tie Rod End: Use a ball joint separator or pickle fork to disconnect the tie rod end from the steering knuckle. If necessary, gently tap with a hammer to loosen it.

Remove the Tie Rod End

• Unscrew the Tie Rod End: Turn the tie rod end counterclockwise to remove it from the steering rack.

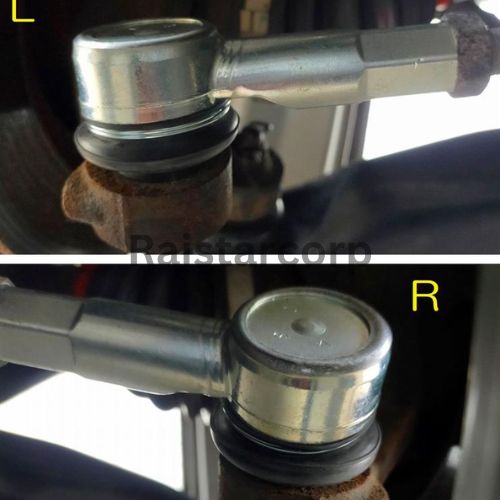

Install the New Suzuki TIE ROD END steering

• Apply Grease: Apply a small amount of grease to the new tie rod end.
• Screw in the New Tie Rod End: Turn the new tie rod end clockwise into the steering rack until it’s snug.
• Reconnect to the Steering Knuckle: Position the tie rod end into the steering knuckle and secure it with the nut. Tighten the nut to the manufacturer’s specifications using a torque wrench.
