Upgrading your 130 Series Mark X with sleek chrome combination handles is a DIY project that not only enhances your car’s aesthetics but also gives you a sense of accomplishment. Whether you’re a seasoned car enthusiast or a first-time tinkerer, this guide will help you replace your rear door handle with confidence and style. Let’s dive in!
What You’ll Need
Before you begin, gather these tools and materials to ensure a smooth process:
-
- T30 Torx screwdriver
- Long extension bar
- Torque driver (for precise tightening)
- Replacement door handle (plated chrome combination)
- Cleaning supplies (microfiber cloth, mild cleaner)
- Optional: TRD door stabilizer removal tool (if applicable)
Bonus tip: Keep a small container handy to store screws and small parts nothing’s worse than losing a crucial piece mid-project!

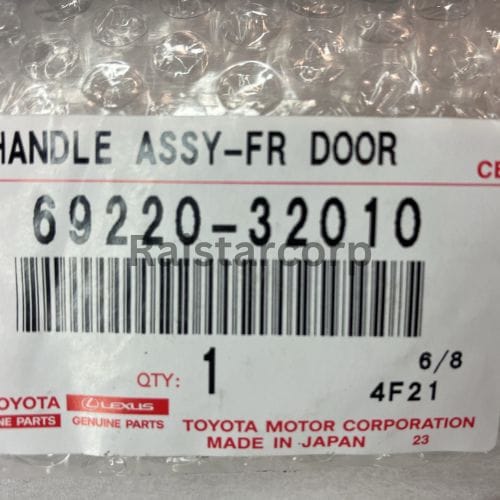

Toyota Camry Handle ASSY Front Replacement 69220-32010
Prep Your Workspace
Start by removing the interior trim of the rear door. Once the trim is off, carefully peel away the waterproof sheet attached with butyl adhesive. This will reveal the inner workings of the door. Take your time here rushing could lead to damage.
Remove the Handle Cover
- Locate the small cover behind the outside handle.
- Unscrew the three T30 Torx screws holding it in place.
- If your car has a TRD door stabilizer, remove it now.
- Disconnect the white coupler near the handle.
⚠️ Pro Tip: Keep track of all screws and parts removed for an easier reassembly process.

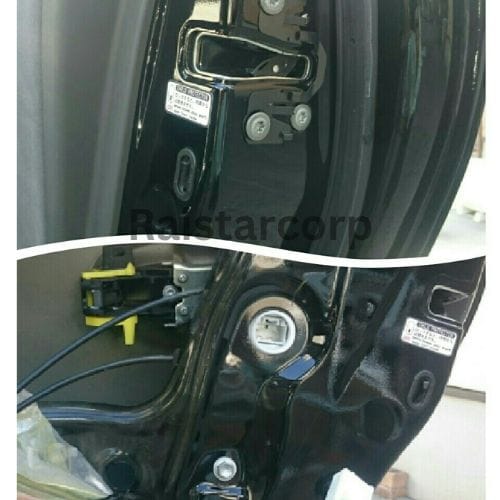

Access the Lock Unit
- Reach into the door’s lock unit and slide it downward.
- Use a long extension bar to loosen the hidden T30 Torx screw at the back. Don’t worry about the screw falling it has a built-in stopper.
- Once loose, remove the door cover behind the handle.
Unlock and Remove the Handle
- Locate the yellow locking mechanism inside the door. Lift it gently to unlock the handle body.
- Slide the handle backward to remove it.
- Important: Do not remove the Torx screw securing the bracket. Some online guides may suggest this, but it’s unnecessary and could complicate the process.

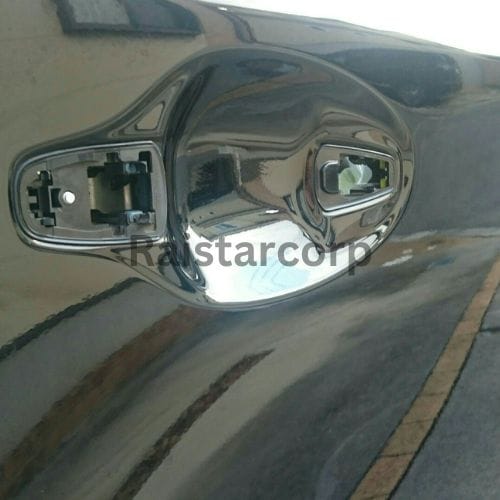

Clean the Area
With the old handle removed, take a moment to clean the area around the opening. This is a rare opportunity to tidy up an often-neglected part of your car.

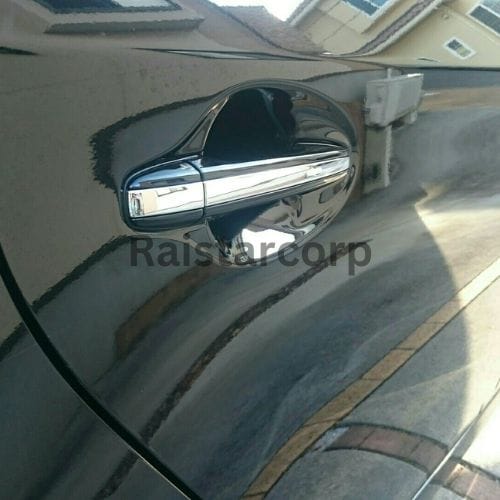

Install the New Chrome Handle
- Slide the new handle into place and secure it by locking the yellow lock mechanism.
- Tighten the T30 Torx screw on the handle cover using your torque driver.
If you are interested in purchasing the Toyota Camry Handle ASSY Front Replacement 69220-32010 contact us.
Our team is ready to assist you with any inquiries you may have about our products and services. Don’t hesitate to reach out!

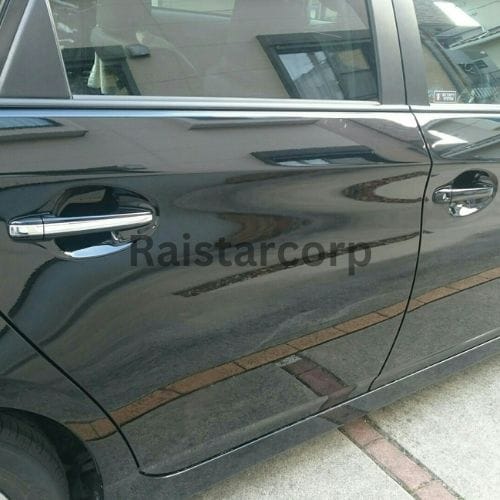

Passenger-Side Handle Replacement
The process for the passenger-side rear door is identical to the driver-side. Follow the same steps, and you’ll have both rear handles shining bright in no time.
Why Upgrade to Chrome Handles?
- Aesthetic Appeal: Chrome handles add a touch of luxury to your Mark X.
- Durability: Chrome plating resists wear and tear better than standard handles.
- DIY Satisfaction: Completing this project yourself saves money and builds your confidence for future car repairs.
Conclusion
Replacing the rear door outside handles on your 130 Series Mark X is more than just a repair it’s an opportunity to personalize your car and learn its inner mechanics. With a little patience and attention to detail, you’ll have your vehicle looking sharper than ever.
Ready for the next step? Once you’ve mastered the rear handles, consider upgrading the front ones to match. Your Mark X deserves the glow-up!
