New SUZUKI IGNIS engine mount replacement-11620-62R10
- Maker:-SUZUKI
- Model:-IGNIS
- Part Numbers:-11620-62R10
Replacing the passenger side engine mount might sound like a daunting task, but with the right tools, preparation, and this step-by-step guide, you’ll be able to tackle it like a pro! Think of it as giving your vehicle a well-deserved tune-up while flexing your mechanical skills. Let’s dive into it!
Preparation-Gearing Up for Success
Before you get your hands dirty, make sure you’ve gathered the following essential tools:
- 14mm straight long wrench – For those hard-to-reach bolts.
- Clawfoot wrench – To make tight spaces manageable.
- Swivel extension bar – Flexibility is key in narrow spots.
- Long extension bar – Reach deep without breaking a sweat.
- Torque wrench with a ratchet function – Precision is everything.
- Jack – To support the transmission securely.
SUZUKI IGNIS engine mount replacement
Accessing the Engine Mount

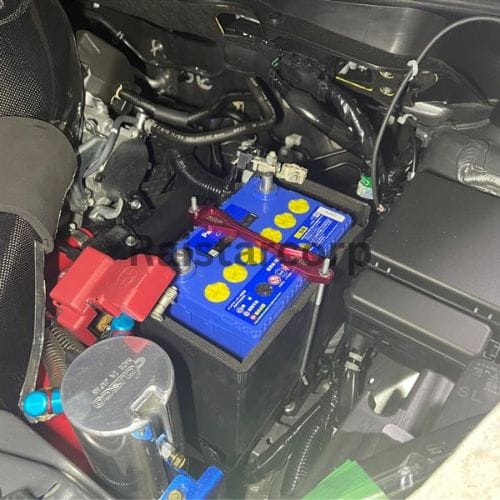

The passenger-side engine mount hides beneath the battery. Here’s how to uncover it:
- Remove the battery carefully to expose the area.
- Loosen and remove the two bolts and nuts holding the plastic battery tray.

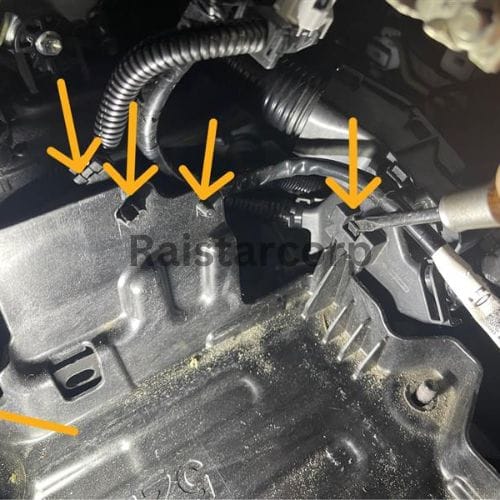

- Detach all clips securing the harnesses to the tray, and then lift out the tray.
Identifying the Mount Fasteners

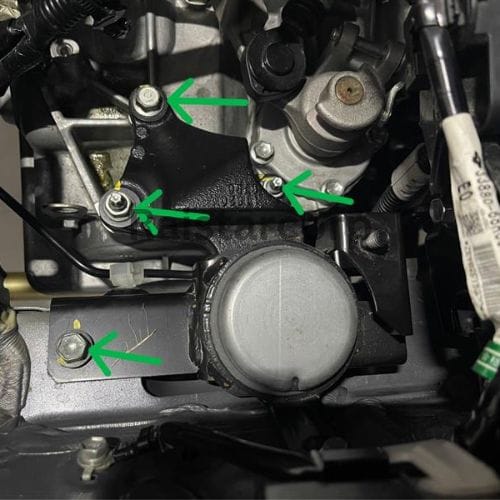

The engine mount is secured by several bolts and nuts. Here’s what to look for:

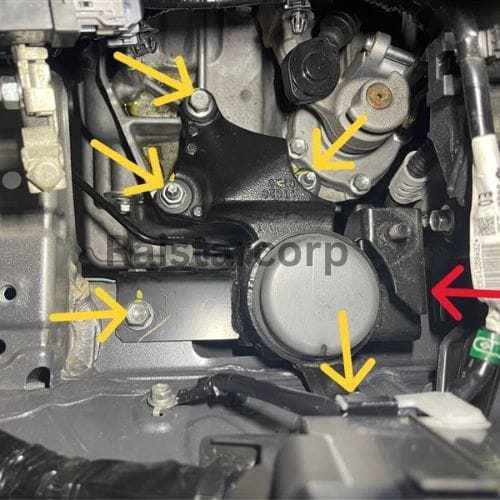

- Yellow Arrow Fasteners: These are straightforward to remove thanks to ample space.
- Red Arrow Bolt: This one’s the tricky customer! It’s nestled in a narrow gap between the mount and the ABS unit.
Challenge Accepted: Prepare for some creative maneuvering to tackle the red arrow bolt!
Removing the Difficult Bolts
- Start with the tough bolt below the ABS unit. Use a long straight bar to access it from above.
- Gradually loosen it until you can remove it by hand.
- If your tools are bumping into components, remove the nut securing the ABS unit fixing stay. This allows you to slightly reposition the ABS unit for better access.
Supporting the Transmission
- Once the difficult bolts are loosened, use a jack to support the transmission.
- Raise the jack gently so the transmission is stable and slightly elevated. This ensures safety and easy removal of the remaining bolts.
Safety First: Double-check the jack’s position to avoid unnecessary risks.
Removing the Old Mount
- Carefully remove all bolts and nuts securing the engine mount.
- Inspect the removed mount for wear and tear. If it’s loose or rattling, you’ve found the culprit!
Celebrate this moment -you’ve made it halfway!
Installing the New Engine Mount

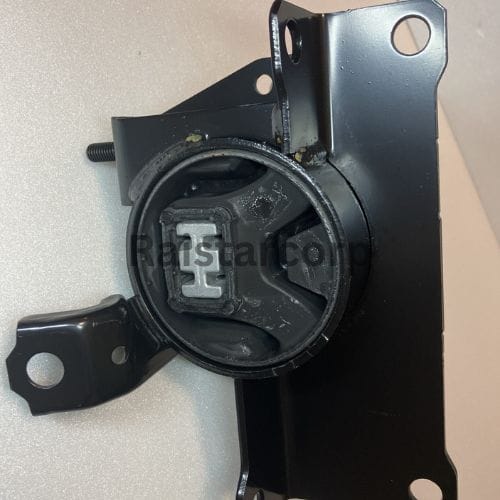

Preparing the New Mount
Transfer any retaining clips (like those for cords or harnesses) from the old mount to the new one. This ensures everything fits perfectly.
Aligning the Bolt Holes
- Temporarily place the new mount in position.
- Use a long spinner handle to adjust the transmission’s position until the bolt holes align. Protect the transmission with a rag to avoid scratches.
Precision is everything here. Take your time to ensure proper alignment.
Securing the New Mount

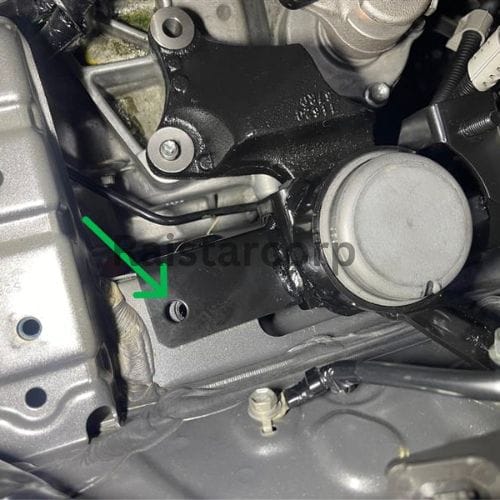

- Insert and lightly tighten the bolts from below to hold the mount in place.
- Use a swivel extension bar for bolts in narrow gaps. Carefully guide them into position using your fingers.
- Tighten all bolts and nuts to the specified torque of 55N using your torque wrench.
Final Adjustments for SUZUKI IGNIS engine mount replacement
With the new mount securely in place:
- Double-check that all fasteners are tightened to the correct torque specifications.
- Reattach any components you removed earlier, such as the ABS unit fixing stay and battery tray.
- Reinstall the battery and ensure all connections are secure.
Take a moment to admire your work you’ve done an amazing job!
Conclusion
Replacing the passenger-side engine mount is no small feat, but it’s a rewarding experience that enhances your vehicle’s performance and longevity. By following this guide, you’ve not only saved time and money but also gained valuable mechanical skills.
Drive safe and enjoy the smoother ride!
