Toyota Courtesy Switch Replacement 84231-53010 guide

If your sliding door easy closer is not working and the courtesy light fails to turn on when the door is open, the problem may be a faulty courtesy switch.

By PawaniPublished Apr 27, 20266 steps
Toyota Courtesy Switch Replacement 84231-53010 guide

If your sliding door easy closer is not working, and the courtesy light fails to turn on when the door is open, the problem may be a faulty courtesy switch. In my case, replacing this small switch completely restored the easy closer and footlight functions on the passenger-side sliding door.

This guide walks you through the process step by step and includes practical tips to help you avoid common mistakes.

Problem & symptoms

Before replacing anything, check whether your vehicle shows these symptoms:

  • The easy closer on the sliding door stops working
  • The courtesy light does not come on when the door is open
  • The switch works intermittently when touched or moved
  • There may be water or moisture inside the switch
  • Related interior lighting, such as footlights, may also stop functioning properly

If these signs sound familiar, the courtesy switch is a strong suspect.

Possible causes

  1. A faulty courtesy switch — the vehicle may not receive the correct door open/closed signal, which interferes with the easy closer and lighting.
  2. Moisture inside the switch — corrosion or water intrusion can interrupt the electrical contact.
  3. In the author’s case, water likely came from condensation from sleeping in the car, rain entering when the door was slightly open, or moisture from cooking inside the vehicle.

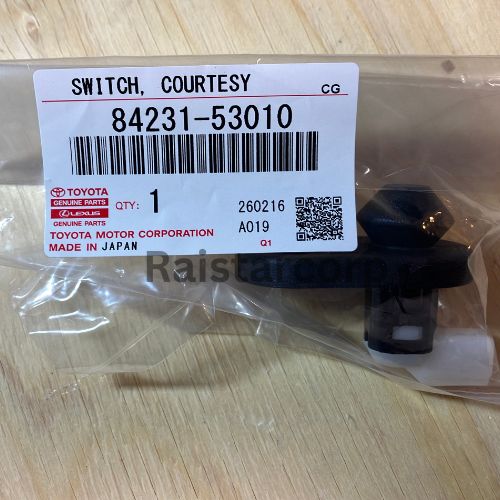

Part identification

Courtesy switch part number: 84231-53010

Check compatibility

The front courtesy switch may use a different part number, so be sure to confirm compatibility for your exact vehicle model before ordering.

For my vehicle, information on the 200 series was limited, but I found useful reference material from the 100 series, which appeared to use a similar design.

Step photo: Toyota Courtesy Switch Replacement 84231-53010 guide

Tools & materials

Tick items off as you gather them.

Safety & cautions

Don’t force the switch out

The wiring behind it may be short and difficult to retrieve if it slips back inside.

Confirm the part number

The front courtesy switch may use a different part number — confirm compatibility for your exact vehicle model before ordering.

Work slowly

Space between the door and window is tight. Work slowly to avoid stripping the screw or damaging the surrounding trim.

Step-by-step instructions

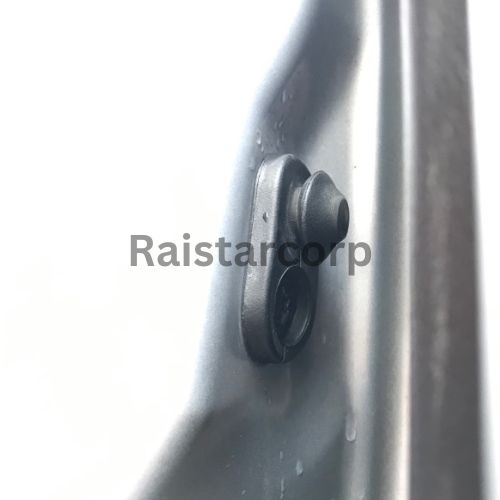

  1. Confirm the problem

    Start by checking whether the courtesy switch is actually causing the issue.

    • Open the sliding door
    • Check if the courtesy light turns on
    • Inspect the switch area
    • Remove the rubber seal around the switch if necessary
    • Press or wiggle the switch gently

    If the light flickers on and off or water drips out, the switch is very likely faulty.

    Once you’ve identified the switch as the issue, order the correct replacement. Online ordering is convenient, but be sure to confirm quantity and compatibility before checkout.

    Moisture is a major warning sign

    Corrosion or water intrusion can interrupt the electrical contact and stop the easy closer from working properly.

    Step photo: Toyota Courtesy Switch Replacement 84231-53010 guideStep photo: Toyota Courtesy Switch Replacement 84231-53010 guide

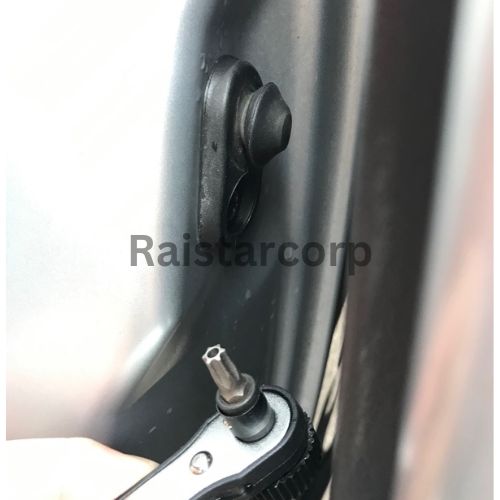

  2. Remove the old courtesy switch

    This part can be awkward because space is limited.

    • Locate the courtesy switch on the sliding door
    • Use the correct Torx tool to remove the screw or screws
    • Carefully pull the switch out

    You may find that the space between the door and window is tight, making tool access difficult. Work slowly to avoid stripping the screw or damaging the surrounding trim.

    Warning

    Do not force the switch out too aggressively. The wiring behind it may be short and difficult to retrieve if it slips back inside.

    Step photo: Toyota Courtesy Switch Replacement 84231-53010 guide
  3. Inspect for water damage

    After removing the switch:

    • Check for moisture, rust, or corrosion
    • Dry the surrounding area if needed
    • Inspect the connector and wiring

    If you see signs of water damage, it’s worth addressing the source to prevent the same issue from happening again.

    Step photo: Toyota Courtesy Switch Replacement 84231-53010 guide
  4. Access the connector

    This was the trickiest part of the job.

    • The connector may sit deep inside the panel
    • Remove any necessary interior trim carefully
    • Use a flashlight to locate the wiring
    • Hold onto the cable so it does not slip back inside

    Because the wire can be short, patience is essential here.

    Tip

    If possible, keep one hand on the wire while disconnecting the old switch and attaching the new one.

    Step photo: Toyota Courtesy Switch Replacement 84231-53010 guide

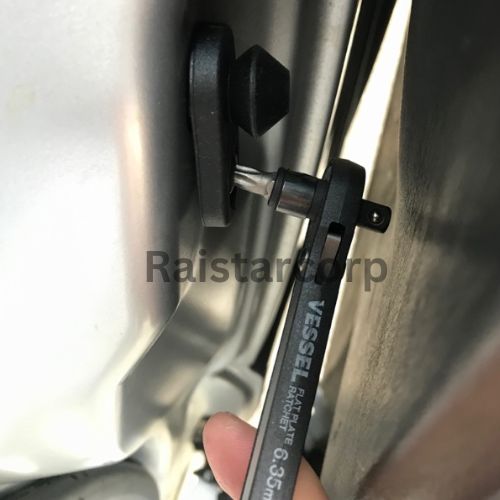

  5. Install the new courtesy switch

    Once the connector is accessible:

    • Disconnect the old switch
    • Connect the new courtesy switch
    • Position it correctly in the mounting location
    • Reinstall the Torx screw or screws securely

    Make sure the new switch matches the old one in shape, connector type, and fit.

  6. Reassemble the interior

    After installing the new switch:

    • Refit any trim pieces you removed
    • Reinstall the rubber seal
    • Check that everything sits properly
    • Confirm no wires are pinched

    Some panels may feel stiff when going back into place, so apply steady pressure rather than forcing them suddenly.

Test the repair

Open and close the sliding door and check:

  • Does the courtesy light turn on?
  • Does the easy closer function properly?
  • Are the footlights working again?

If all three are working, the repair was successful.

Why the courtesy switch affects the easy closer

The courtesy switch may seem like a minor part, but it plays an important role in the door system. It helps the vehicle detect whether the door is open or closed. When the switch fails, the vehicle may not receive the correct signal, which can interfere with systems such as:

  • Easy closer operation
  • Courtesy lighting
  • Footwell or step lighting
  • Door status detection

That is why replacing this inexpensive switch can solve what feels like a much bigger sliding door problem.

Common challenges

  • Tight working space
  • Torx screws instead of standard screws
  • Deep, hard-to-reach connector
  • Short wiring harness
  • Stiff trim pieces during reassembly

Lessons learned

  • Diagnose before buying — a quick inspection can save time and help avoid unnecessary parts purchases.
  • Always confirm the part number — even similar-looking switches may not be the same.
  • Expect hidden difficulty — a small part does not always mean an easy job.
  • Be patient — most of the work is not technically difficult; it just requires care and persistence.

Before you start: this guide describes the author’s own repair. Always confirm the part number for your exact vehicle, and if you are unsure, consult a professional.
